1-bedroom model
AS540 — Our Backyard Home
1 bedroom · 1 bath · 540 sq ft
A generously sized one-bedroom with an open floor plan, floor-to-ceiling sliding glass doors, a full kitchen with appliances, and Pergo flooring.
32.4′ × 16.7′
Aging parents, young professionals, newlyweds, adult children, rental income
Site connections and permit fees waived
The AS540, up close
AmerADU's own render of the AS540 at 32.4′ × 16.7′ — metal roof, black-framed glazing and private entry — so you can picture how the unit sits on your lot.
Full specs
- Unit size
- Approximately 540 sq ft
- Overall dimensions
- 32'–4½" × 17'–8" (per floor plan)
- Bedrooms
- 1
- Bathrooms
- 1 full
- Kitchen
- Full-size · refrigerator, range, dishwasher
- Laundry
- Washer / dryer included
- Framing
- Steel · CALGreen certified
- Roof
- Class A metal · Polar White / Mocha Tan / Ash Grey
- Siding
- Cement fiberboard · horizontal, vertical, board & batten, stucco-effect
- Flooring
- Pergo Luxury · Copper Hide / Maribel / Allspice
- Insulation
- HERS-inspected · high-density interior and exterior
- Solar ready
- 2.3kW system qualifies for CA Net Zero (not included)

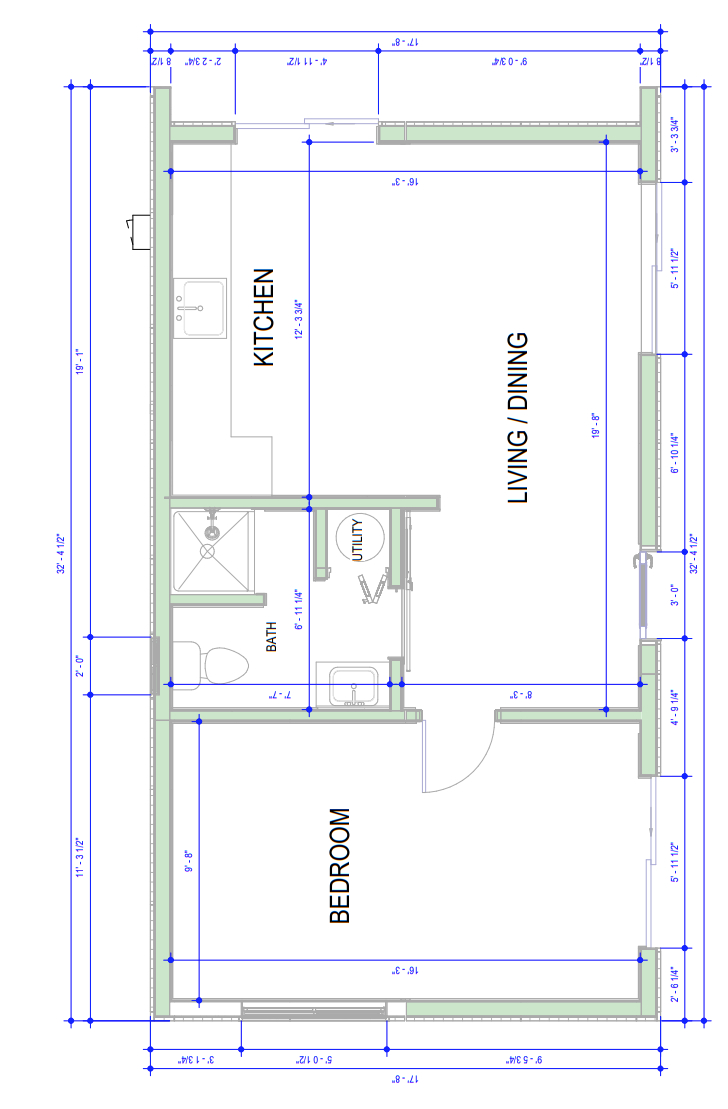

Floor plan
1 bedroom · 1 bath · 540 sq ft — dimensions per AmerADU's plan. Open the drawing or download the PDF for plan review.
Download floor plan (PDF)Why the AS540
The AS540 is built for real living. A private bedroom, full bathroom and open living-kitchen-dining area sit in a compact footprint that works on most California lots — the sweet spot for aging parents, newlyweds, adult children or a long-term tenant.
Rental income potential
A quality one-bedroom ADU rents at roughly $1,500–$2,200 per month in Los Angeles County, $1,800–$2,800 in the Bay Area, and $1,200–$1,800 in Sacramento — roughly $14,000–$24,000 a year.
Energy & construction
Steel framing, cement fiberboard siding and Class A metal roofing give a fire-resistant, low-maintenance exterior. Double-pane windows and insulated doors keep energy costs down, and the unit is HERS-tested before delivery.
Finishes & colors
Pergo luxury flooring, 1.5-inch laminate counters, white cabinetry, and full-size appliances. Roof and siding colors are chosen from the Sherwin Williams palette to complement the primary residence.
Warranty & support
Manufacturer warranty coverage on structure and factory-installed systems, plus standard appliance warranties. Documentation is provided at the final walkthrough.
Inside the AS540
Finished interiors from a delivered AmerADU unit.
Compare the lineup
Every model is priced on the same cost sheet — site connections included.
Specs, dimensions and floor plans are provided by AmerADU and are subject to change without notice. Renders are illustrative study models, not construction documents. ADU construction is subject to local zoning and permit approval. UR TEAM Real Estate Services · DRE 01979726 · NMLS 1371923.
